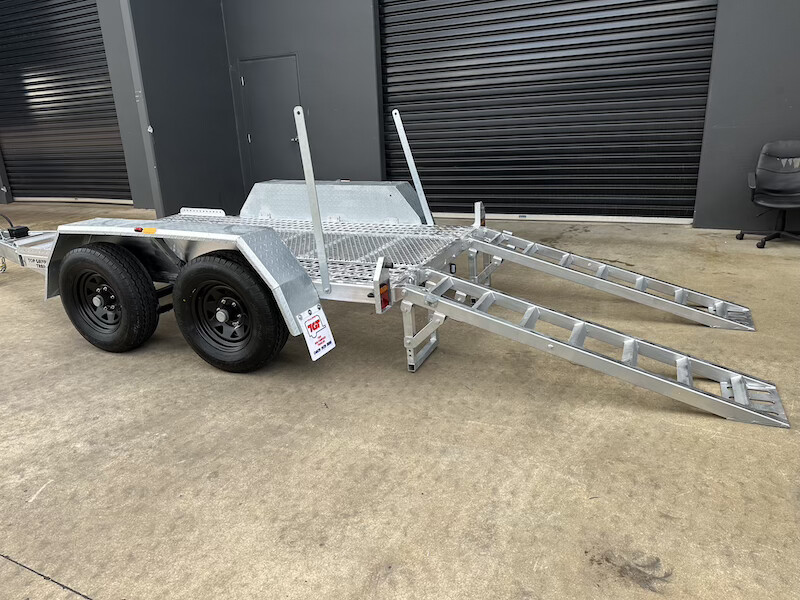

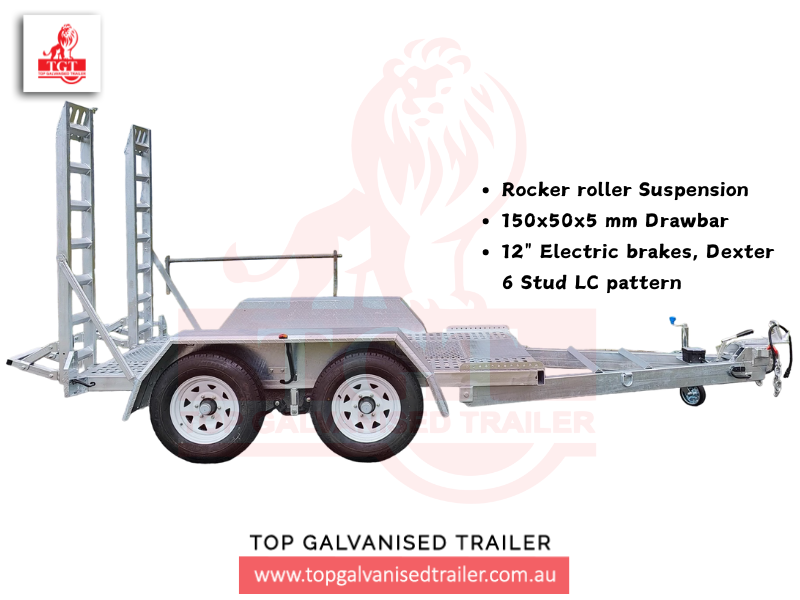

Plant Trailer 10×6 Galvanised Machinery Trailer 3500kg ATM

Dimensions
  • ATM: 3500 kg
  • Tare: 880 kg
  • Loading Capacity: 2620 kg
  • Internal Size: 3000 x 1900mm
Specifications
  • Drawbar: 1900 mm; 150 x 50 x 5 mm RHS
  • Chassis: 100x50x5mm RHS Frame
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Colour: Silver
  • Floor: Punched Floor
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50 mm Square Solid Drop Axle with Parallel Bearings
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Wheel & Tyres: NEW 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Adjustable Loading Ramp with Gas Strut
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs—- Not Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling
  • Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Bearing
  • Warranty: 24 Months Structural
Optional Extras
  • Spare Wheel: $200
  • Spare Wheel Holder: $60
  • 12 Months VIC Registration: $150
More Features
  All of the electrical wirings have been passed interiorly through the chassis tubes, and therefore are not exposed.

Electric Trailer Brakes

  • Convenience: Electric brakes can be activated through the brake controller in the towing vehicle, making them easier to use than manual brakes.
  • Better Braking Performance: Electric brakes may offer more stopping power for heavier trailers than manual brakes.
  • Increased Safety: By offering more effective stopping force and reliable braking performance, electric brakes can increase the overall safety of towing a heavy trailer.
  • Consistent Braking: Electric brakes provide consistent braking performance, regardless of the weight distribution in the trailer.
  • Low Maintenance: Electric brakes are low-maintenance and require minimal upkeep compared to other types of brakes.
  If you have any questions or need assistance, please don’t hesitate to Contact Us.
  • ATM: 3500kg
  • Tare: 900kg
  • Loading Capacity: 2600kg
  • Internal Size: 3000 x 1900mm
  • Ramp Height: 1800mm
  • Height from ground to deck: 500mm
  • Total Height with ramp from ground: 2250mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 100 × 50 x 5mm Reinforced RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Floor: Punched Floor, Fully Welded
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Square Solid Drop Axle
  • Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Ramps: Adjustable Loading Ramp with Gas Strut
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Elecbrakes Brake Controller
  • Other Customisations

10×6 Plant Trailer Hot Dip Galvanised 3500kg ATM

$7,100.00 $7,400.00 $300.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later

Additional Options – Priced Separately:

ATM-4500kg Upgrade Package

Optional Extras

VIC Registration

Product price: $7,100.00
Total options:
Order total:
Pay a 10% deposit
Request a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
This field is for validation purposes and should be left unchanged.

Categories: ,

SKU: TB-PLTT35106

Our heavy-duty plant trailers are equipped with powerful 12″ electric brakes for effective stopping power and safety on the road.

Its hot-dipped galvanised design means that it can be used in rough outdoor environments without fear of rust or corrosion.

  • ATM: 3500kg
  • Tare: 900kg
  • Loading Capacity: 2600kg
  • Internal Size: 3000 x 1900mm
  • Ramp Height: 1800mm
  • Height from ground to deck: 500mm
  • Total Height with ramp from ground: 2250mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 100 × 50 x 5mm Reinforced RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Floor: Punched Floor, Fully Welded
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Square Solid Drop Axle
  • Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Ramps: Adjustable Loading Ramp with Gas Strut
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Elecbrakes Brake Controller
  • Other Customisations
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Elecbrakes Brake Controller
  • Other Customisations

Tailored for Work Backed for the Long Tow

We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.

5-Year Structural Warranty

Custom Trailer Options to Suit Your Needs

Trusted by Aussies Nationwide
