Description
10×5 Hydraulic Tipper Trailer Galvanised 3200kg ATM
| Dimensions |
|---|
- ATM: 3200 kg
- Tare: 870 kg (Exclude cage)
- Loading Capacity: 2330 kg
- Exterior Length: 5.05 m
- Exterior Width: 2.02 m
- Internal Size: 3000 x 1530 x 300 mm
| Specifications |
|---|
- Drawbar: 1600 mm; 150 x 50 x 5mm RHS
-
Coupling: 50 mm Quick Release Coupling 3500 kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Colour: Silver
-
Checker Plate: 2.5mm
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50 mm Round Solid Dual Axle
-
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle) -
Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres -
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs. -
Sides: 300 mm Folded Up (Not Bolted); – Full Step-Up Platforms on Both Sides. – Ladder Rack Holder on each side. -
Cage: 600 or 900mm (Sold Separately) -
Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling -
Brakes: 10″ Electric Drum on Four Wheels
- Warranty: 24 Months Structural
| Hydraulic System |
|---|
- Toolbox: Trailer Drawbar Aluminium Toolbox
-
Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack -
Battery: 120 AMP Deep Cycle Battery
| Optional Extras |
|---|
- Spare Wheel: $120
- Spare Wheel Holder: $60
- 12 Months VIC Registration: $150
- Galvanised Cage 600/900mm: $350/$450
- Canvas Cover 600/900 mm High: $650/$740
- Ladder Racks (Pair) for 600/900 mm (H): $250/$270

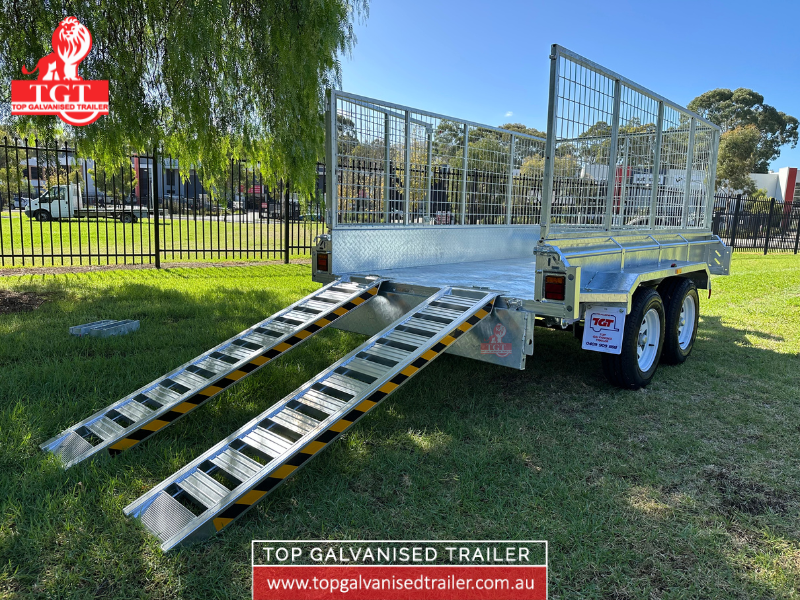

- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm): $680
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm): $750

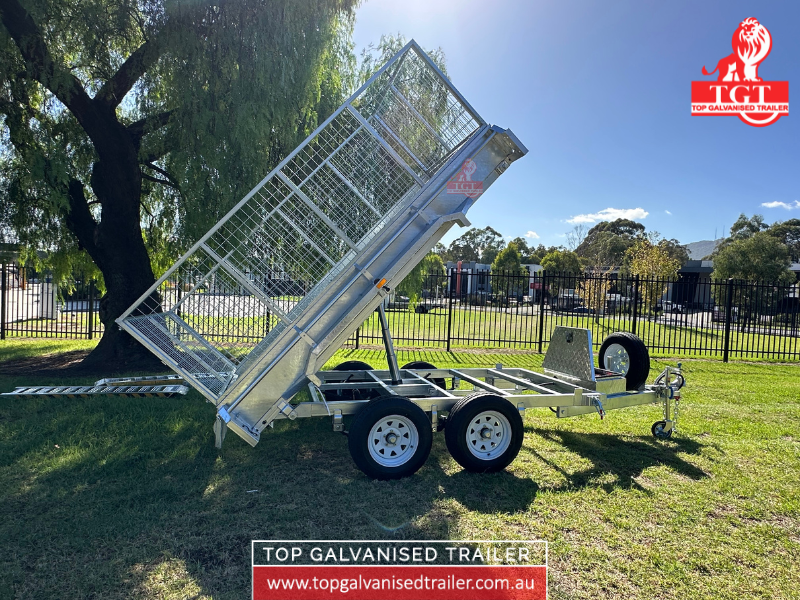

Are tipper trailers any good?

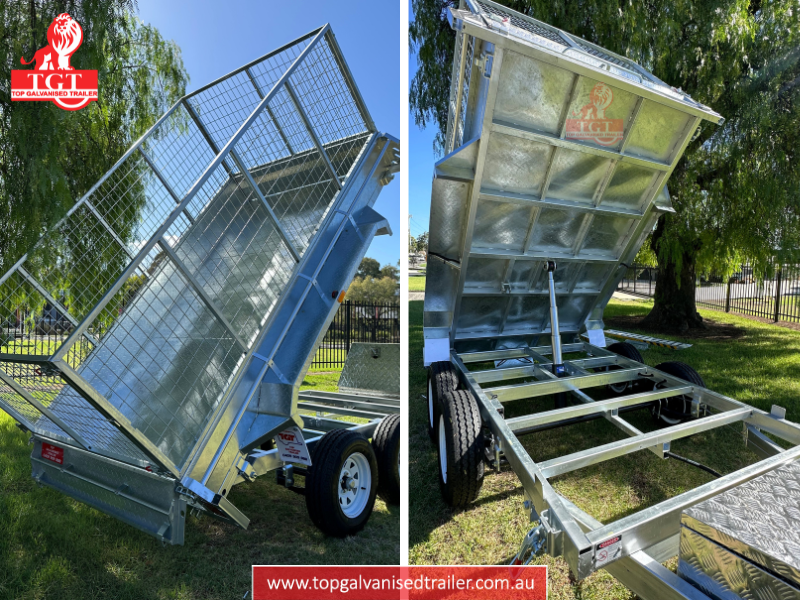

Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be used in tough outdoor environments without fear of rust or corrosion. If you have any questions or need assistance, please don’t hesitate to Contact Us.
Specifications
- ATM: 3200kg
- Tare: 870kg (Exclude cage)
- Loading Capacity: 2330kg
- Exterior Length: 5.05m
- Exterior Width: 2.02m
- Internal Size: 3000 x 1530 x 300mm
- Drawbar: 1600mm; 150 x 50 x 5mm RHS
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50mm Dual Solid Axles
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- Toolbox: Trailer Drawbar Aluminium Toolbox
- Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
Videos
Warranty
10×5 Hydraulic Tipper Trailer Galvanised 3200kg ATM
$8,399.00 $8,699.00 $300.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
Categories: Hydraulic Tipper Trailers
SKU: HYDTBT30105
Description
Hydraulic tipper trailer with a 3200kg ATM: a cost-effective and lighter alternative to the standard 3.5-ton tipper trailer. Designed for those who need reliable tipping functionality without the added weight and expense.
Specifications
- ATM: 3200kg
- Tare: 870kg (Exclude cage)
- Loading Capacity: 2330kg
- Exterior Length: 5.05m
- Exterior Width: 2.02m
- Internal Size: 3000 x 1530 x 300mm
- Drawbar: 1600mm; 150 x 50 x 5mm RHS
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50mm Dual Solid Axles
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- Toolbox: Trailer Drawbar Aluminium Toolbox
- Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
videos
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
Warranty
Tailored for Work Backed for the Long Tow
We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.
