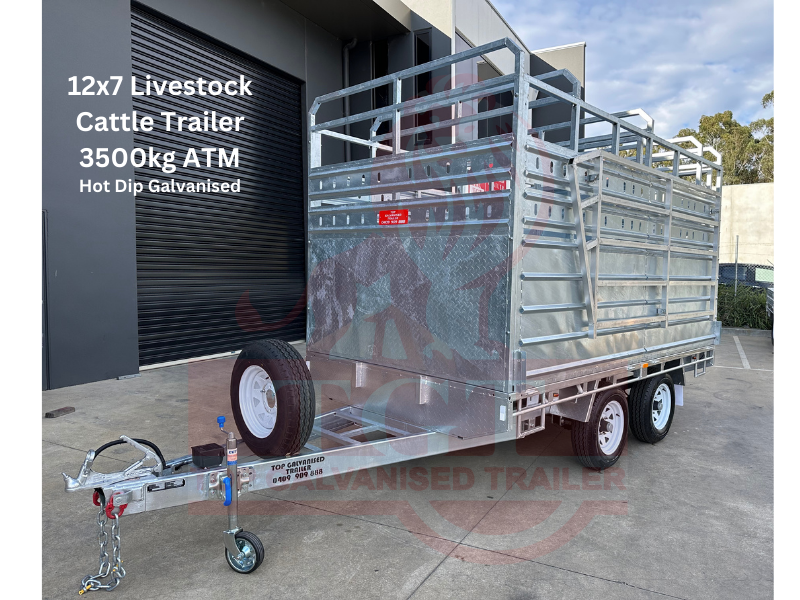

12×7 Livestock Trailer Galvanised Cattle Trailer with Ramps 3500kg ATM
Dimensions
  • ATM: 3500 kg
  • Tare: 1550 kg
  • Loading Capacity: 1950 kg
  • Exterior Length: 5500mm
  • Exterior Width: 2180mm (excl. Jack Legs)
  • Internal Size: 3505 x 2130 x 1833mm
  • Height from ground to the floor: 800mm
Specifications

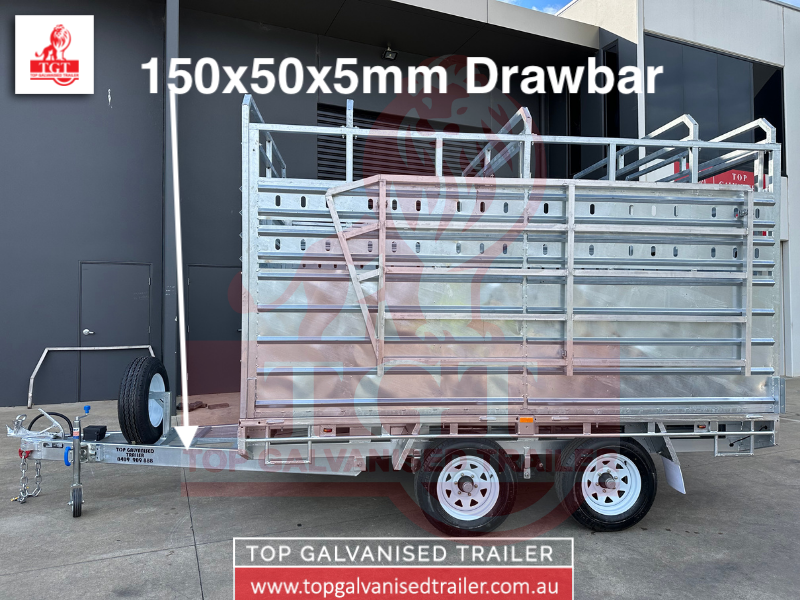

  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Coupling: 50 mm Quick Release Coupling 3500 kg
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Colour: Silver
  • Checker Plate: 2.5 mm
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: 50 mm Round Solid 12″ Dual Dexter Axle
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Wheel & Tyres: 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Light Truck Tyres
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.

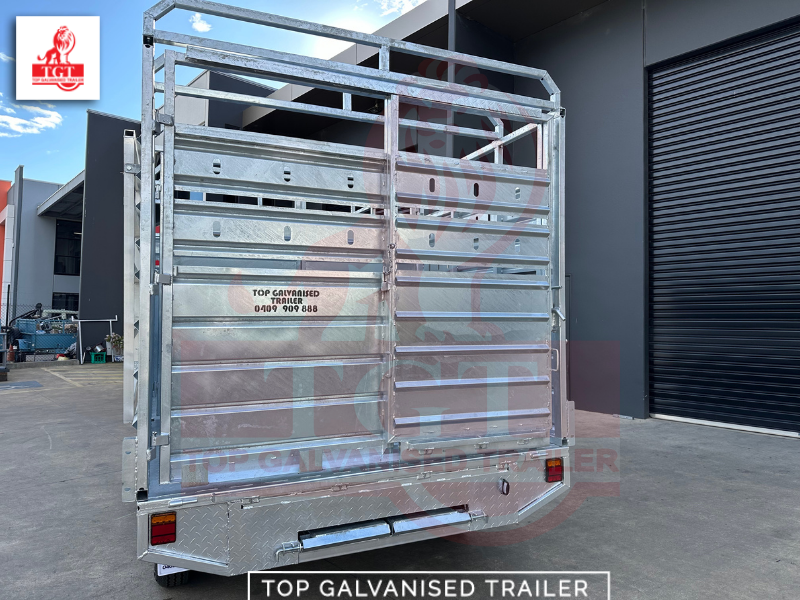

  • Cage: Removable Stock Crate Cage

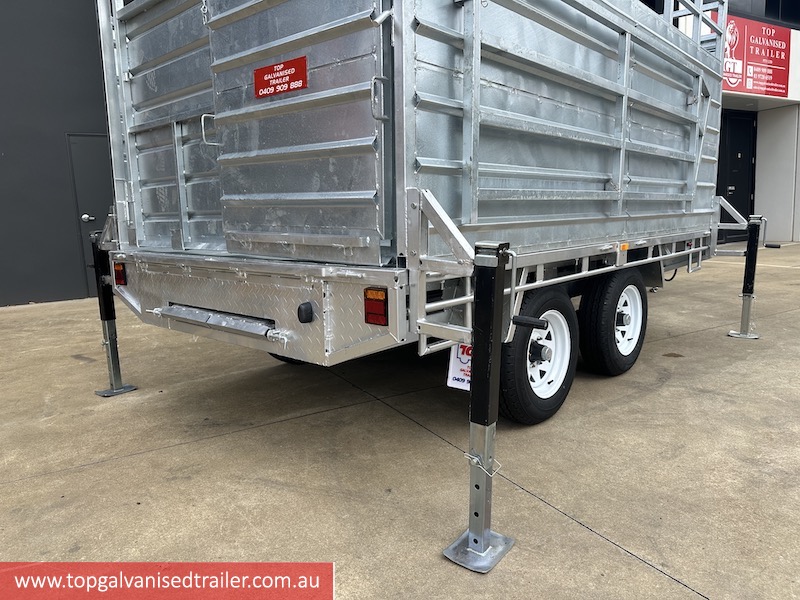

  • Jack Legs: Four Wind-up Jack Legs to Remove Stock Crate (Sold Separately)
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling
  • Brakes: 12″ Electric Drum on Four Wheels

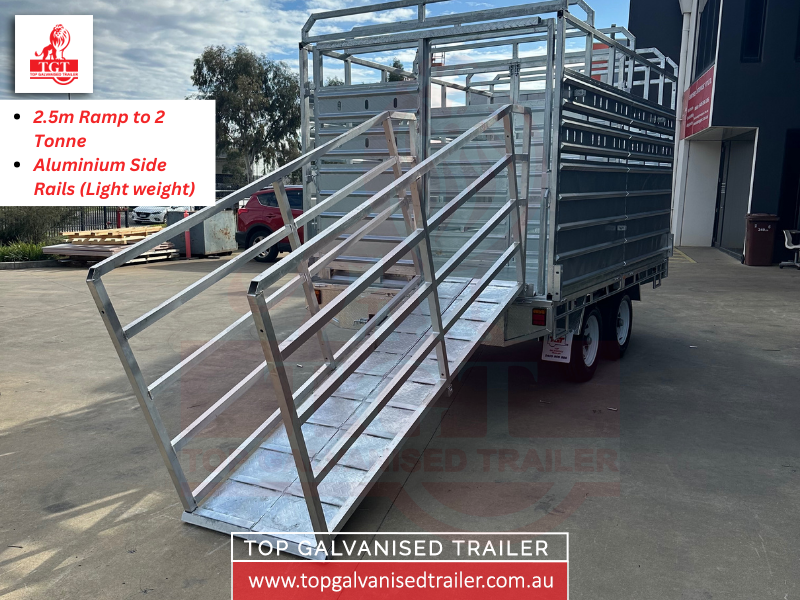

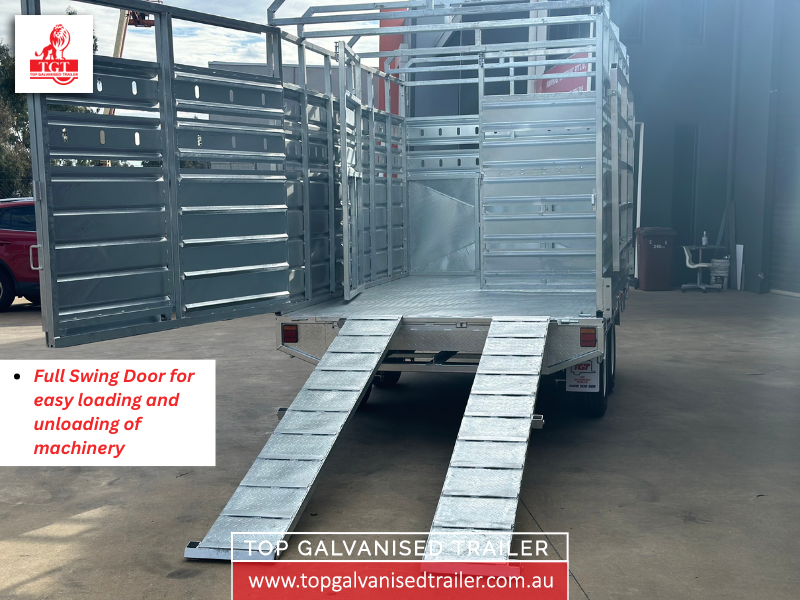

  • Ramps: 2.5m Galvanised Multi-functional Ramps with Two Rails
  • Warranty: 24 Months Structural
Optional Extras
  • Spare Wheel: $200
  • Spare Wheel Holder: $60
  • 12 Months VIC Registration: $150
  • Toolbox 1200*400*360mm: $500
  • Galvanised Mower Pad: $500

More Features:

The aim of this versatile Livestock trailer & Flat Top Trailer is to offer the most useful and practical transportation solution for the livestock business. It is ideal for delivering small to medium-sized agricultural machinery and equipment as well as livestock. The livestock cage may be removed from the trailer’s main body, allowing the trailer to quickly and easily change from a cattle trailer to a flat-top trailer whenever needed.   If you have any questions or need assistance, please don’t hesitate to Contact Us.
  • ATM: 3500kg
  • Tare: 1550kg
  • Loading Capacity: 1950kg
  • Exterior Length: 5.50m
  • Exterior Width: 2.18m (excl. Jack Legs)
  • Internal Size: 3505 x 2130 x 1833mm
  • Height from ground to the floor: 800mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
  • Coupling: 50mm Quick Release Coupling 3500kg
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Solid Axle
  • Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub Fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Crate: Removable Stock Crate Cage
  • Jack Legs: Four Wind-up Jack Stands to Remove Stock Crate (Sold Separately)
  • Ramps: 2.5m Galvanised Multi-functional Ramps with Two Rails
  • Tie Down Rails
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Jack Legs
  • Aluminium Toolbox
  • Mowerpad
  • Upgrade to ATM-4500kg
  • Elecbrakes Brake Controller
  • Other Customisations

12×7 Livestock Trailer Galvanised Cattle Trailer with 2.5m Ramps 3500kg ATM

$12,300.00 $12,599.00 $299.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later

Additional Options – Priced Separately:

ATM-4500kg Upgrade Package

Optional Extras

VIC Registration

Product price: $12,300.00
Total options:
Order total:
Pay a 10% deposit
Request a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
This field is for validation purposes and should be left unchanged.

Categories:

SKU: CTFLT35127

Multi-functional Livestock Trailer & Flat Top Galvanised Trailer! The aim of this versatile 2 in 1 cattle & flat top trailer is to offer the most useful and practical transportation solution for the livestock business. It is ideal for delivering small to medium-sized agricultural machinery and equipment as well as livestock. The livestock cage may be removed from the trailer’s main body, allowing the trailer to quickly and easily change from a cattle trailer to a flat-top trailer whenever needed.
  • ATM: 3500kg
  • Tare: 1550kg
  • Loading Capacity: 1950kg
  • Exterior Length: 5.50m
  • Exterior Width: 2.18m (excl. Jack Legs)
  • Internal Size: 3505 x 2130 x 1833mm
  • Height from ground to the floor: 800mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
  • Coupling: 50mm Quick Release Coupling 3500kg
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Solid Axle
  • Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub Fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Crate: Removable Stock Crate Cage
  • Jack Legs: Four Wind-up Jack Stands to Remove Stock Crate (Sold Separately)
  • Ramps: 2.5m Galvanised Multi-functional Ramps with Two Rails
  • Tie Down Rails
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Jack Legs
  • Aluminium Toolbox
  • Mowerpad
  • Upgrade to ATM-4500kg
  • Elecbrakes Brake Controller
  • Other Customisations
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Jack Legs
  • Aluminium Toolbox
  • Mowerpad
  • Upgrade to ATM-4500kg
  • Elecbrakes Brake Controller
  • Other Customisations
