Description

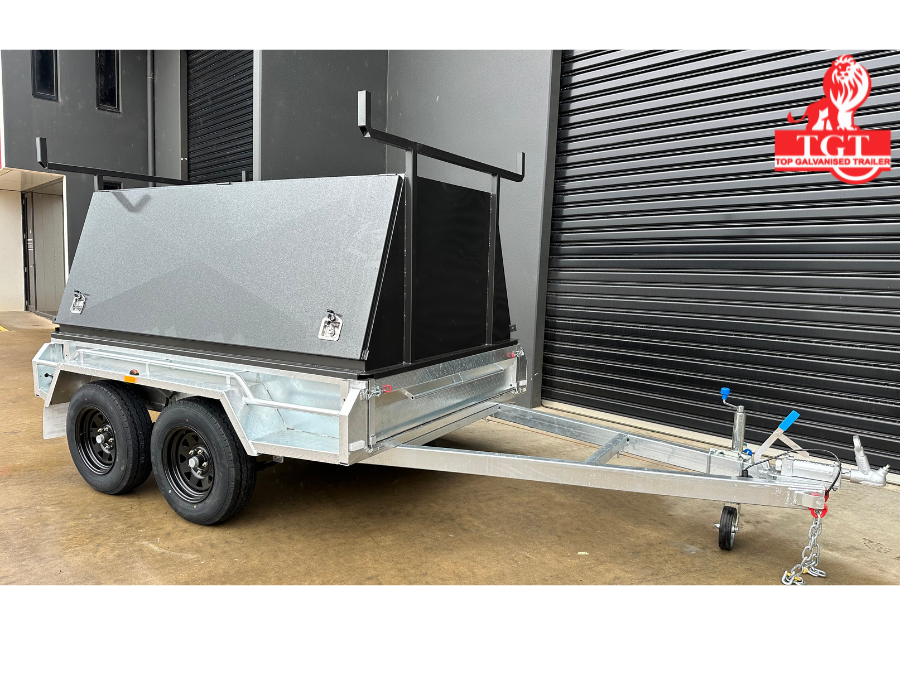

8×5 Tradesman Trailer with Brakes Tradie Trailer 2000kg ATM

Dimensions

ATM: 2000 kg
Tare: 720 kg
Loading Capacity: 1280 kg
Exterior Length: 4.30 m
Exterior Width: 2.02 m
Internal Size: 2420 x 1530 x 300 mm

Specifications

Drawbar: 1900 mm; 100 x 50 x 3 mm RHS

Coupling: 50 mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Colour: Silver
Checker Plate: 2.5 mm
Lights: LED Tail Lights + LED Number Plate Light + Side Lights
Axle: Dual Axle, 50 mm Round Solid Axle (Front Disc Braked Axle)
Wheel & Tyres: 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Sides: 300 mm Folded Up (Not Bolted)
Suspension: 6 Leaf (8mm) Rocker Roller Springs; Fully Welded Spring Hangers – Improved Stability, Increased Load Capacity, – Longer Lifespan & Better Handling
Brakes: 10″ Mechanical Disc Brake
Warranty: 24 Months Structural

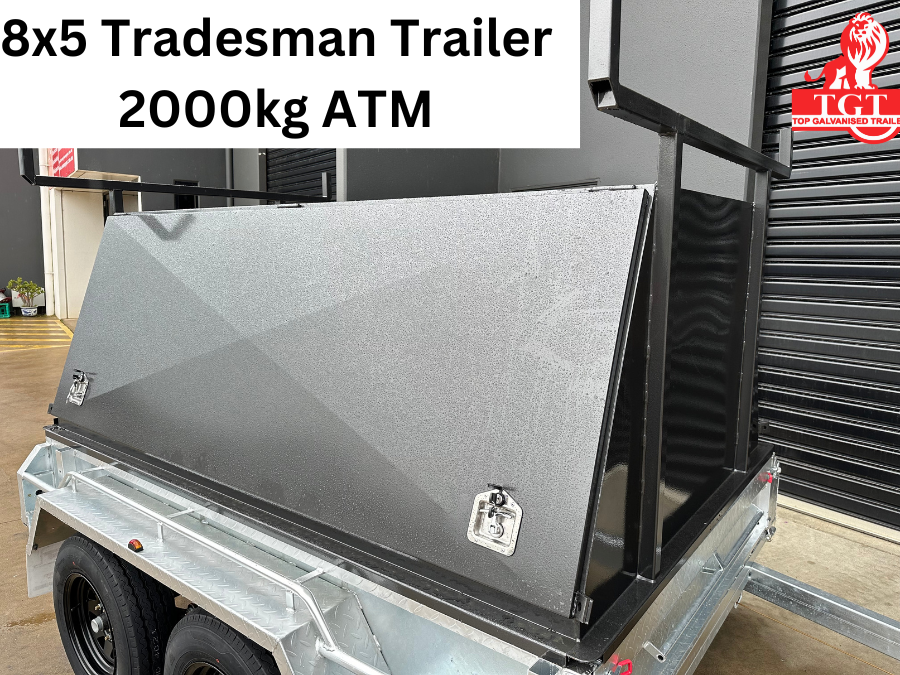

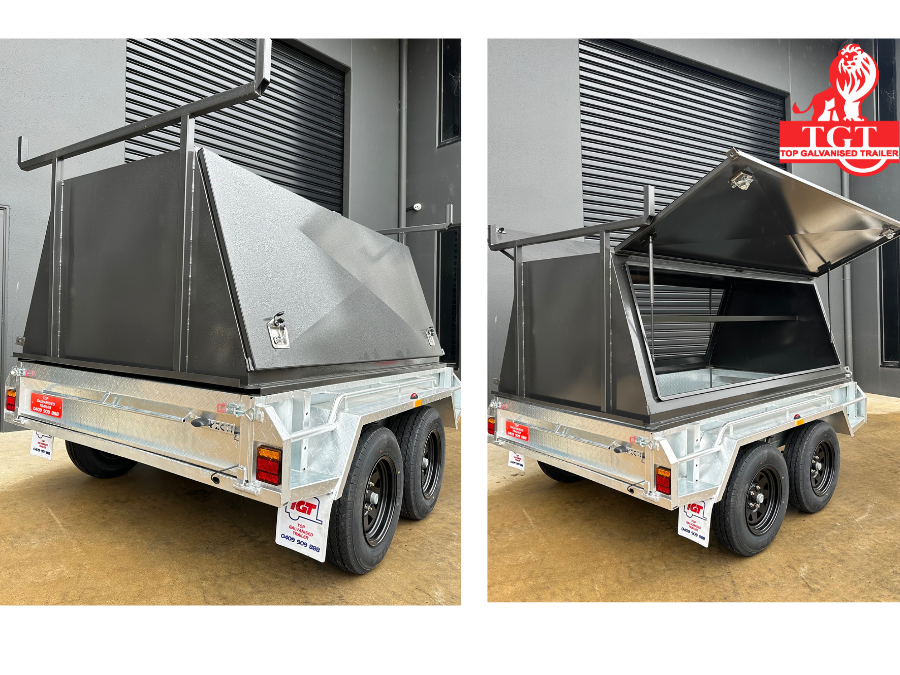

Canopy Specifications (Customisable)

Height: 900mm
Material: 2.5 mm Smooth Steel Painted
Doors: 2 doors with gas struts.
Roof Racks: Twin Roof Racks
Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof

Optional Extras

Spare Wheel: $160
Spare Wheel Holder: $60
12 Months VIC Registration: $150
Toolbox 1200*400*360 mm: $550
Galvanised Mower Pad: $500

More Features:

All of the electrical wirings have been passed interiorly through the chassis tubes, and therefore are not exposed. Additionally, all of our trailers come with extra supports on the chassis, which makes our trailers exceptionally durable and safe.

50 x 50 x 3 mm Chassis

If you have any questions or need assistance, please don’t hesitate to Contact Us.

Specifications

Trailer Specs:

ATM: 2000kg
Tare: 720kg
Loading Capacity: 1280kg
Exterior Length: 4.43m
Exterior Width: 2.02m
Internal Size: 2420 x 1530 x 300mm
Drawbar: 1900mm; 100 x 50 x 3mm RHS
Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Round Solid Axle
Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
50×50mm Reinforced Horizontal & Vertical SHS Support Beams

Canopy Specs (Customisable):

Height: 900mm
Material: 2.5 mm Smooth Steel Painted
Doors: 2 Doors with Gas Struts
Roof Racks: Twin Roof Racks
Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Ladder Racks (Pair)
Aluminium Toolbox
Mowerpad
Other Customisations

Videos

Warranty

8×5 Tradesman Trailer Galvanised Tradie Trailer 2000kg ATM

$5,990.00 ~~$6,140.00~~ $150.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Tandem Trailers, Tradesman Trailer

SKU: TBTS85Tradesman-1

Description

Our 8×5 Tradie Trailer is designed to transport the equipment that tradesmen like carpenters, electricians, plumbers, and landscapers need. Hot Dipped Galvanised Tandem Trailer with Customisable Canopy.

Specifications

Trailer Specs:

ATM: 2000kg
Tare: 720kg
Loading Capacity: 1280kg
Exterior Length: 4.43m
Exterior Width: 2.02m
Internal Size: 2420 x 1530 x 300mm
Drawbar: 1900mm; 100 x 50 x 3mm RHS
Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Round Solid Axle
Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
50×50mm Reinforced Horizontal & Vertical SHS Support Beams

Canopy Specs (Customisable):

Height: 900mm
Material: 2.5 mm Smooth Steel Painted
Doors: 2 Doors with Gas Struts
Roof Racks: Twin Roof Racks
Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Ladder Racks (Pair)
Aluminium Toolbox
Mowerpad
Other Customisations

videos

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Ladder Racks (Pair)
Aluminium Toolbox
Mowerpad
Other Customisations

Warranty

Tailored for Work Backed for the Long Tow

We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.
