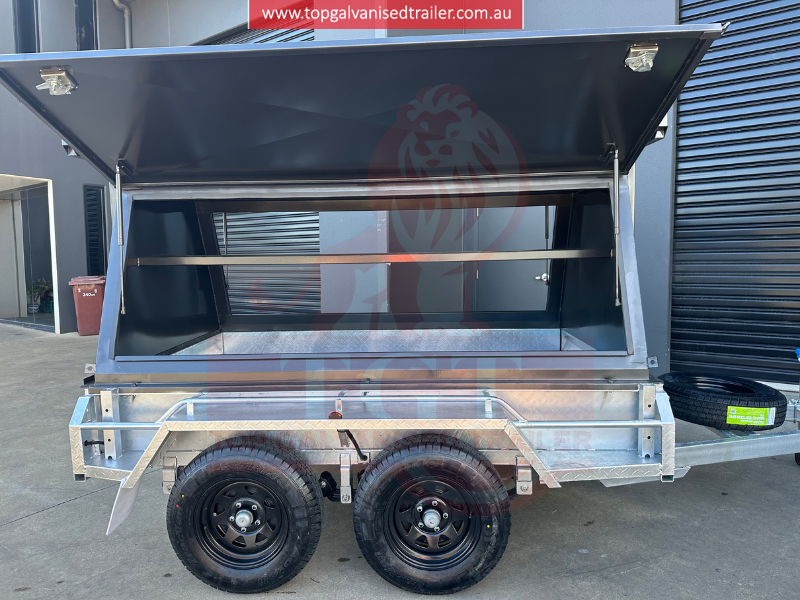

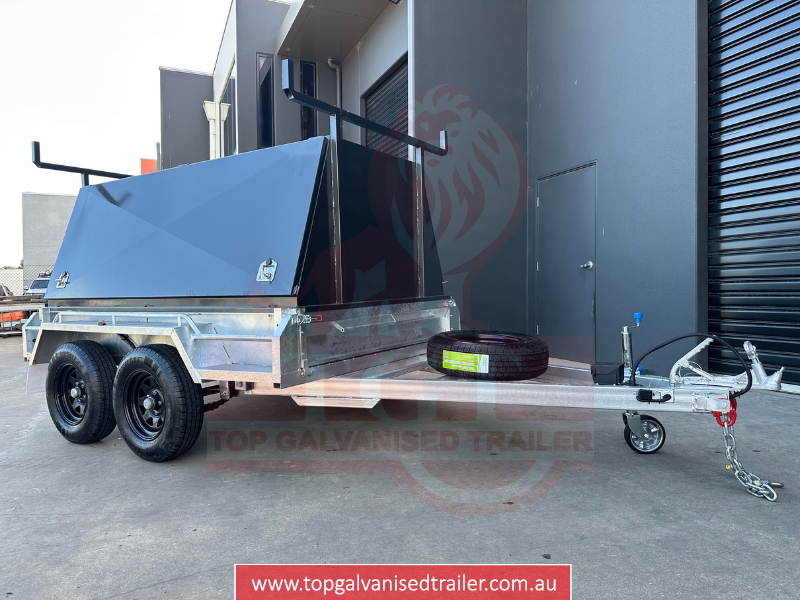

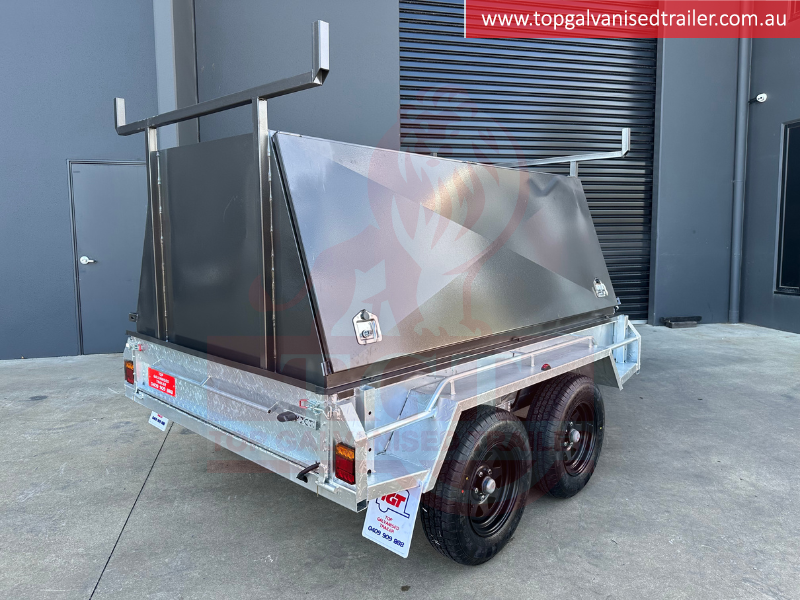

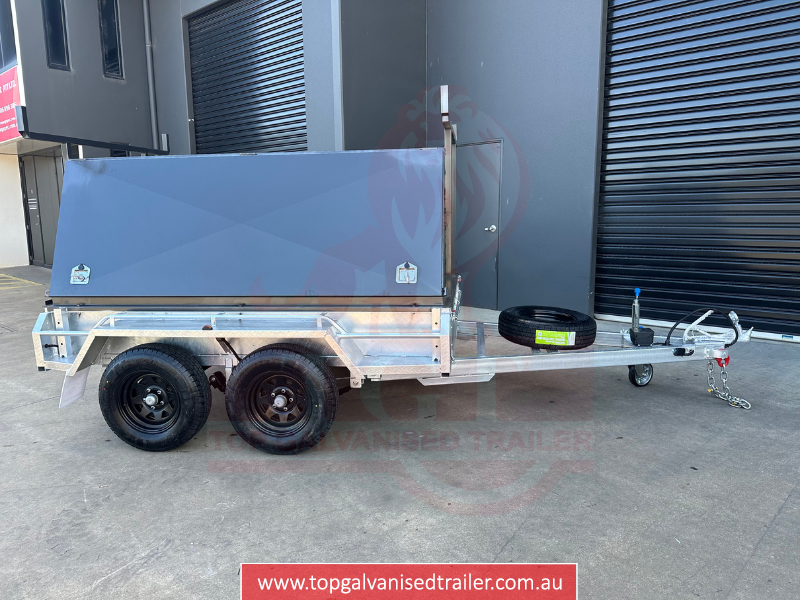

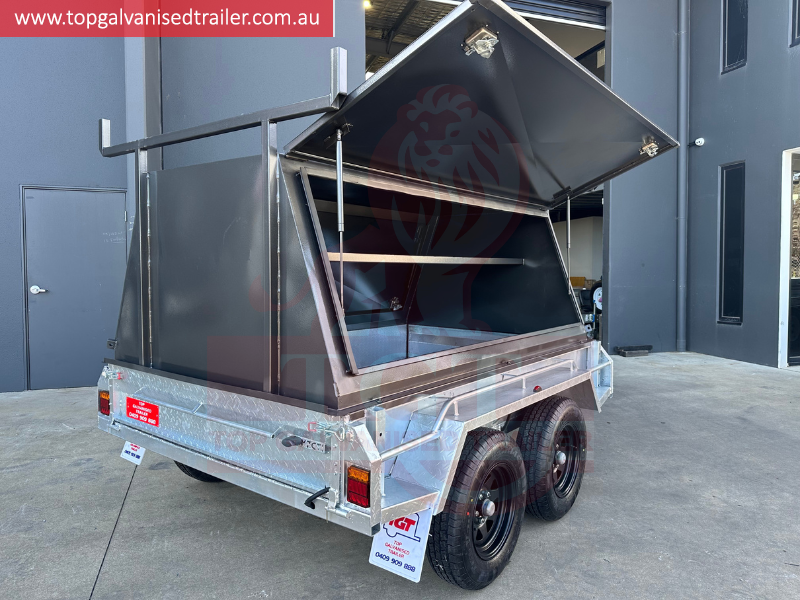

8×5 Tradesman Trailer with Brakes Tradie Trailer 3200kg ATM
Dimensions
  • ATM: 3200 kg
  • Tare: 660 kg
  • Loading Capacity: 2540 kg
  • Exterior Length: 4.43 m
  • Exterior Width: 2.02 m
  • Internal Size: 2420 x 1530 x 300 mm
Specifications
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Drawbar: 1900mm; 150 x 50 x 5 mm RHS
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Colour: Silver
  • Checker Plate: 2.5 mm
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50 mm Round Solid Axle with Parallel Bearings
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Wheel & Tyres: NEW 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Sides: 300 mm Folded Up (Not Bolted) Full Step-Up Platforms on Both Sides, PLUS Ladder racks Holder
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling
  • Brakes: 10″ Electric Drum Brakes On Four Wheels
  • Warranty: 24 Months Structural

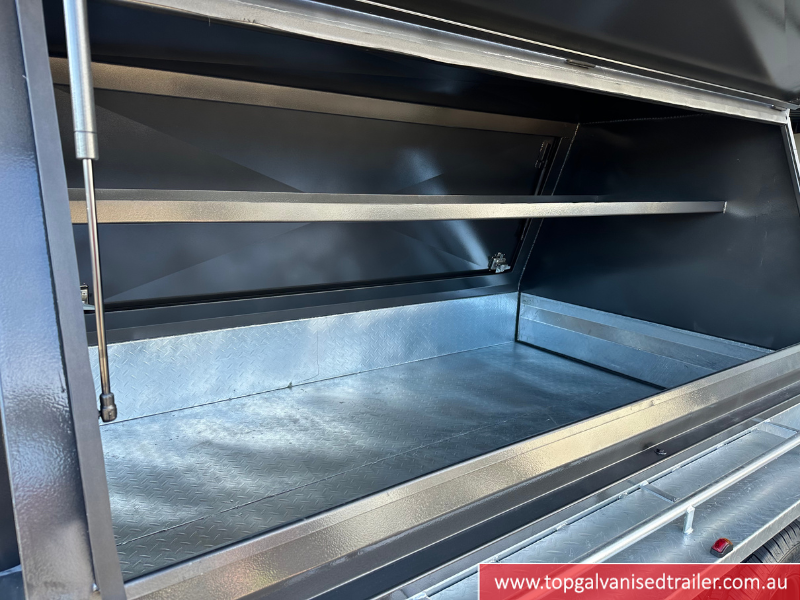

Canopy Specifications (Customisable)
  • Height: 900mm
  • Material: 2.5 mm Smooth Steel Painted
  • Doors: 2 doors with gas struts.
  • Roof Racks: Twin Roof Racks
  • Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof
Optional Extras
  • Spare Wheel: $160
  • Spare Wheel Holder: $60
  • 12 Months VIC Registration: $150
  • Toolbox 1200*400*360 mm: $550
  • Galvanised Mower Pad: $500

More Features:

All of the electrical wirings have been passed interiorly through the chassis tubes, and therefore are not exposed. Additionally, all of our trailers come with extra supports on the chassis, which makes our trailers exceptionally durable and safe.
  • 70 x 50 x 3 mm Chassis
  If you have any questions or need assistance, please don’t hesitate to Contact Us.

Trailer Specs:

  • ATM: 3200kg
  • Tare: 700kg
  • Loading Capacity: 2500kg
  • Exterior Length: 4.43m
  • Exterior Width: 2.02m
  • Internal Size: 2420 x 1530 x 300mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Round Solid Axle with Parallel Bearings
  • Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 10″ Electric Drum Brakes On Four Wheels
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
  • Extended Step-up Platforms On Both Sides
  • Tie Down Rails All Around
  • Ladder Racks Holders

Canopy Specs (Customisable):

  • Height: 900mm
  • Material: 2.5 mm Smooth Steel Painted
  • Doors: 2 doors with gas struts.
  • Roof Racks: Twin Roof Racks
  • Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Ladder Racks (Pair)
  • Aluminium Toolbox
  • Mowerpad
  • Elecbrakes Brake Controller
  • Other Customisations

8×5 Tradesman Trailer Galvanised Tradie Trailer 3200kg ATM

$7,670.00 $7,899.00 $229.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later

Additional Options – Priced Separately:

Pay a 10% deposit
Request a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
This field is for validation purposes and should be left unchanged.

Categories: ,

SKU: TBTS85Tradesman-1-1

Our 8×5 Tradesman Trailer is designed to transport the equipment that tradesmen like carpenters, electricians, plumbers, and landscapers need. High-Quality Hot Dipped Galvanised Tandem Trailer with Customisable Tradie Canopy.

Trailer Specs:

  • ATM: 3200kg
  • Tare: 700kg
  • Loading Capacity: 2500kg
  • Exterior Length: 4.43m
  • Exterior Width: 2.02m
  • Internal Size: 2420 x 1530 x 300mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Round Solid Axle with Parallel Bearings
  • Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 10″ Electric Drum Brakes On Four Wheels
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
  • Extended Step-up Platforms On Both Sides
  • Tie Down Rails All Around
  • Ladder Racks Holders

Canopy Specs (Customisable):

  • Height: 900mm
  • Material: 2.5 mm Smooth Steel Painted
  • Doors: 2 doors with gas struts.
  • Roof Racks: Twin Roof Racks
  • Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Ladder Racks (Pair)
  • Aluminium Toolbox
  • Mowerpad
  • Elecbrakes Brake Controller
  • Other Customisations
  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Ladder Racks (Pair)
  • Aluminium Toolbox
  • Mowerpad
  • Elecbrakes Brake Controller
  • Other Customisations

Tailored for Work Backed for the Long Tow

We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.

5-Year Structural Warranty

Custom Trailer Options to Suit Your Needs

Trusted by Aussies Nationwide
