• ATM: 1800 kg • Tare: 720 kg • Loading Capacity: 1080 kg • Exterior Length: 4.4 m • Exterior Width: 2.02 m • Internal Size: 2420 x 1530 x 425 mm • Drawbar: 1600 mm; 120 x 50 x 4 mm RHS • Coupling: 50 mm Quick Release Coupling 3500 kg • Safety Chain: 10 mm with Hammerlock Shackle (a safe alternative to welding) • Surface Finish: Hot Dipped Galvanised (Rust Free) • Checker Plate: 2.5 mm; Fully Welded Body & Chassis • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle) • Axle: 50 mm Round Solid Single Axle • Wheel & Tyres: New, 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 235/75R15LT Light Truck Tyres • Suspension: Heavy Duty 60 mm Wide 8 Leaf 8 mm Eye to Eye Offroad Springs • Brakes: 12″ Electric Drum on Two Wheels, Dexter Hub 2T Rated • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs • Side Walls: 425 mm High Sides, Fully Welded • Welded Ladder Racks Holders • Tie Down Rails All Around • Cage: 600 or 900 mm (Sold Separately) • Toolbox: Trailer Drawbar Toolbox • Hydraulic Pump: 2.0T, 3 Stages Hydraulic Cylinder with Hydraulic Power Pack • Battery: 120 AMP Deep Cycle Battery

• ATM: 1800kg

• Tare: 720kg

• Loading Capacity: 1080kg

• Exterior Length: 4.40m

• Exterior Width: 2.02m

• Internal Size: 2420 x 1530 x 425mm

• Drawbar: 1600mm; 120 x 50 x 4mm RHS

• Coupling: 50mm Quick Release Coupling 3500kg

• Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding)

• Surface Finish: Hot Dipped Galvanised (Rust Free)

• Checker Plate: 2.5mm; Fully Welded Body & Chassis

• Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights

• Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)

• Axle: 50mm Round Solid Single Axle

• Wheel & Tyres: New, 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 235/75R15 Light Truck Tyres

• Suspension: Heavy Duty 60mm Wide 8 Leaf 8mm Eye to Eye Offroad Springs

• Brakes: 12″ Electric Drum on Two Wheels, Dexter Hub 2 Tonne Bearings 25580/15123

• Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs

• Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)

• Step-up Platforms On Both Sides

• Tie Down Rails All Around

• Ladder Racks Holders

• Cage: 600 or 900mm (Sold Separately)

• Toolbox: Trailer Drawbar Toolbox

• Hydraulic Pump: 2.0T, 3 Stages Hydraulic Cylinder with Hydraulic Power Pack

• Battery: 120 AMP Deep Cycle Battery

• Spare Wheel

• Spare Wheel Holder

• Onsite Registration

• Galvanised Cage 600/900mm

• Canvas Cover

• Ladder Racks (Pair)

• Aluminium Ramps

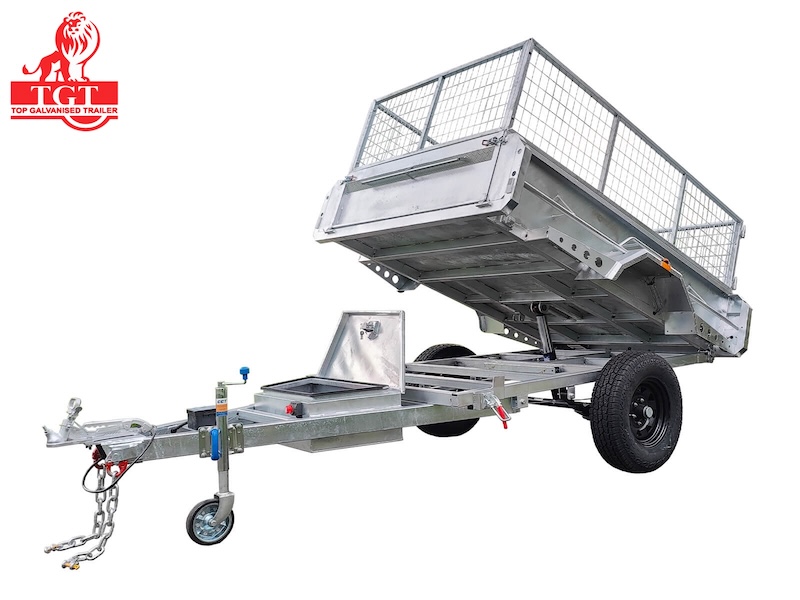

8×5 Hydraulic Tipper Trailer Single Axle 1800kg ATM

$6,499.00 $6,999.00 $500.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later

Additional Options – Priced Separately:

Cage

Ladder Racks

Canvas Cover

Spare Wheel

VIC Registration

Cage

Ladder Racks

Canvas Cover

Product price: $6,499.00
Total options:
Order total:
Pay a 10% deposit
Request a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
This field is for validation purposes and should be left unchanged.

Categories:

SKU: HYDTBT1885

Single Axle Hydraulic Tipper — Compact, durable, and easy to use, with a hydraulic system for quick unloading. Perfect for transporting soil, rubbish, and more.

• ATM: 1800kg

• Tare: 720kg

• Loading Capacity: 1080kg

• Exterior Length: 4.40m

• Exterior Width: 2.02m

• Internal Size: 2420 x 1530 x 425mm

• Drawbar: 1600mm; 120 x 50 x 4mm RHS

• Coupling: 50mm Quick Release Coupling 3500kg

• Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding)

• Surface Finish: Hot Dipped Galvanised (Rust Free)

• Checker Plate: 2.5mm; Fully Welded Body & Chassis

• Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights

• Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)

• Axle: 50mm Round Solid Single Axle

• Wheel & Tyres: New, 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 235/75R15 Light Truck Tyres

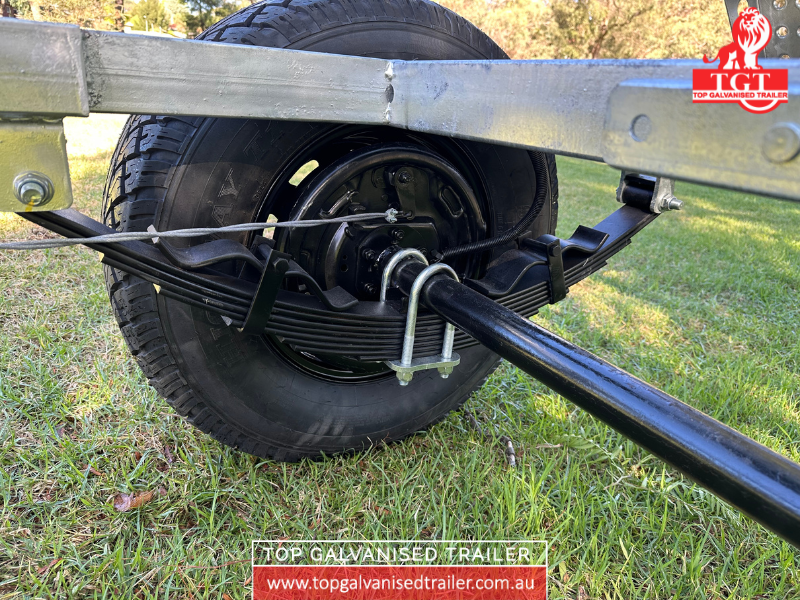

• Suspension: Heavy Duty 60mm Wide 8 Leaf 8mm Eye to Eye Offroad Springs

• Brakes: 12″ Electric Drum on Two Wheels, Dexter Hub 2 Tonne Bearings 25580/15123

• Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs

• Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)

• Step-up Platforms On Both Sides

• Tie Down Rails All Around

• Ladder Racks Holders

• Cage: 600 or 900mm (Sold Separately)

• Toolbox: Trailer Drawbar Toolbox

• Hydraulic Pump: 2.0T, 3 Stages Hydraulic Cylinder with Hydraulic Power Pack

• Battery: 120 AMP Deep Cycle Battery

• Spare Wheel

• Spare Wheel Holder

• Onsite Registration

• Galvanised Cage 600/900mm

• Canvas Cover

• Ladder Racks (Pair)

• Aluminium Ramps

• Spare Wheel

• Spare Wheel Holder

• Onsite Registration

• Galvanised Cage 600/900mm

• Canvas Cover

• Ladder Racks (Pair)

• Aluminium Ramps
