Description

8×5 Hydraulic Tipper Trailer Galvanised 3500kg ATM

Dimensions

ATM: 3500kg
Tare: 1070kg
Loading Capacity: 2430kg
Exterior Length: 4.4m
Exterior Width: 2.02m
Internal Size: 2440 x 1530 x 425mm

Specifications

Drawbar: 1900 mm; 150 x 50 x 5mm RHS

Coupling: 50 mm Quick Release Coupling 3500 kg
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Colour: Silver
Checker Plate: 2.5mm
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: 50 mm Round Solid 12″ Dual Dexter Axle
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Wheel & Tyres: 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 195/R15C Light Truck Tyres
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Sides: 425 mm Folded Up (Not Bolted) Full Step-Up Platforms on Both Sides
Ladder Racks Holder on the side
Cage: 600 or 900mm (Sold Separately)
Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling
Brakes: 12″ Electric Drum on Four Wheels

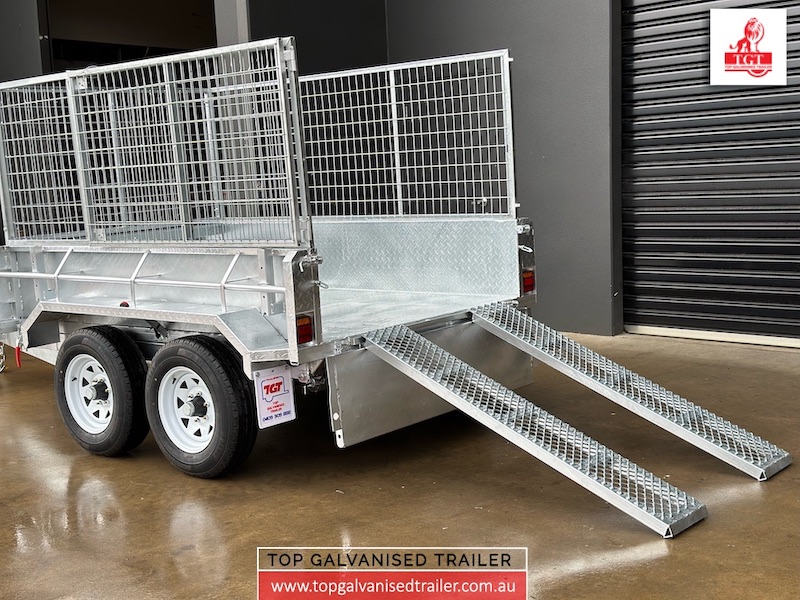

Underbody Ramp Holders: Holders for 2m Slide Loading Ramps (Sold Separately)
Warranty: 12 Months Structural

Hydraulic System

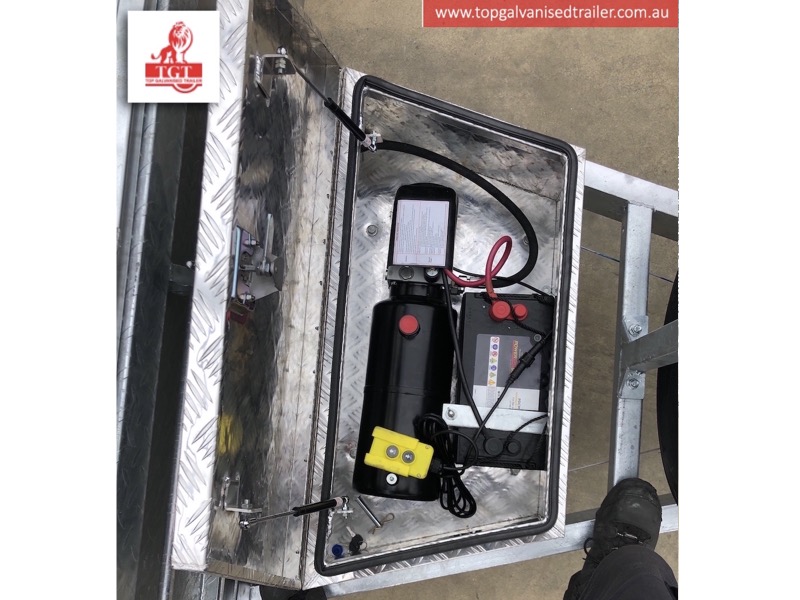

Toolbox: Trailer Drawbar Aluminium Toolbox

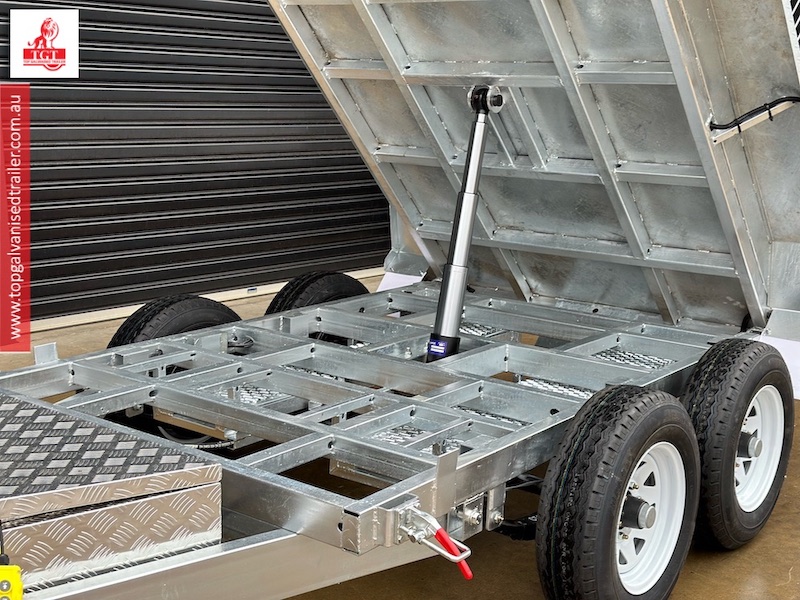

Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

600mm High Galvanised Cage: $300
900mm High Galvanised Cage: $400
Spare Wheel: $220
Spare Wheel Holder: $60
12 Months VIC Registration: $150
Canvas Cover 600/900mm High: $550/$590
Ladder Racks (Pair) for 600/900mm (H): $250/$270
Underbody 2m, 2Ton Galvanised Slide Loading Ramps: $600

Are tipper trailers any good?

Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be used in tough outdoor environments without fear of rust or corrosion. Don’t forget to check out our other range of Galvanised Hydraulic Tipper Trailers: 10×5 If you have any questions or need assistance, please don’t hesitate to Contact Us.

Specifications

ATM: 3500kg
Tare: 1020kg (Exclude cage)
Loading Capacity: 2480kg
Exterior Length: 4.43m
Exterior Width: 2.02m
Internal Size: 2440 x 1530 x 425mm
Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
Chassis: Lower Chassis 70×50x3mm RHS, Upper Chassis 100x50x5mm RHS
Coupling: 50mm Quick Release Coupling 3500kg
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Axle
Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)
Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
Underbody Ramp Holders: Holders for 2m Slide Loading Ramps (Sold Separately)
Toolbox: Fitted Drawbar Aluminium Toolbox
Hydraulic Pump: 4.5 Ton, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Underbody 2.0 Ton, 2m Galvanised Slide Loading Ramps
Elecbrakes Brake Controller
Other Customisations

Videos

Warranty

8×5 Hydraulic Tipper Trailer Galvanised 3500kg ATM

$9,450.00 ~~$9,820.00~~ $370.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Optional Extras

VIC Registration

Product price:	$9,450.00
Total options:
Order total:

Pay Deposit (10%)
Pay in Full

Pay a 10% deposit

Request a Quote

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Hydraulic Tipper Trailers

SKU: HYDTBT3585

Description

Specifications

ATM: 3500kg
Tare: 1020kg (Exclude cage)
Loading Capacity: 2480kg
Exterior Length: 4.43m
Exterior Width: 2.02m
Internal Size: 2440 x 1530 x 425mm
Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
Chassis: Lower Chassis 70×50x3mm RHS, Upper Chassis 100x50x5mm RHS
Coupling: 50mm Quick Release Coupling 3500kg
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Axle
Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)
Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
Underbody Ramp Holders: Holders for 2m Slide Loading Ramps (Sold Separately)
Toolbox: Fitted Drawbar Aluminium Toolbox
Hydraulic Pump: 4.5 Ton, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Underbody 2.0 Ton, 2m Galvanised Slide Loading Ramps
Elecbrakes Brake Controller
Other Customisations

videos

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Underbody 2.0 Ton, 2m Galvanised Slide Loading Ramps
Elecbrakes Brake Controller
Other Customisations

Warranty

Tailored for Work Backed for the Long Tow

We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.
