Description

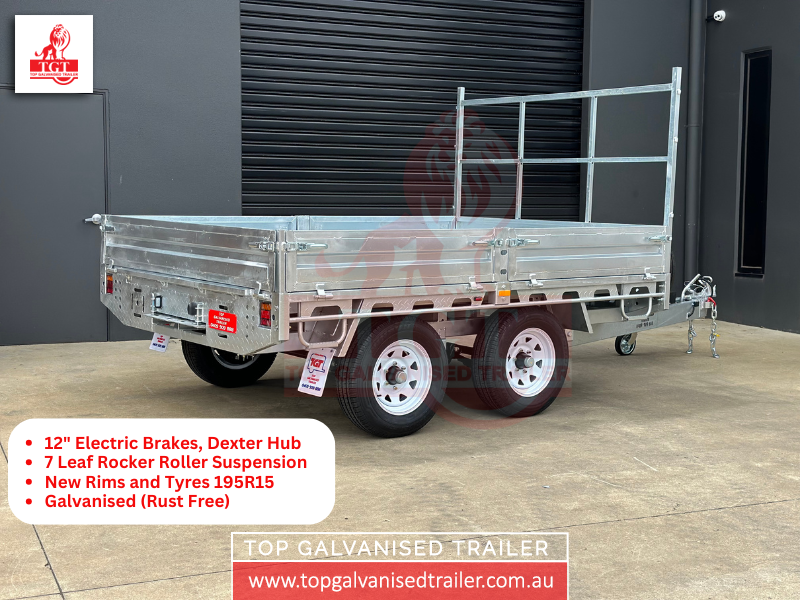

10×7 Flat Top Trailer Galvanised with Ramps 3500 kg ATM
| Dimensions |
|---|
- ATM: 3500 kg
- Tare: 990 kg
- Loading Capacity: 2510 kg
- Exterior Length: 4900mm
- Exterior Width: 2010mm
- Internal Size: 2920mm x 2020mm x 300mm
| Specifications |
|---|

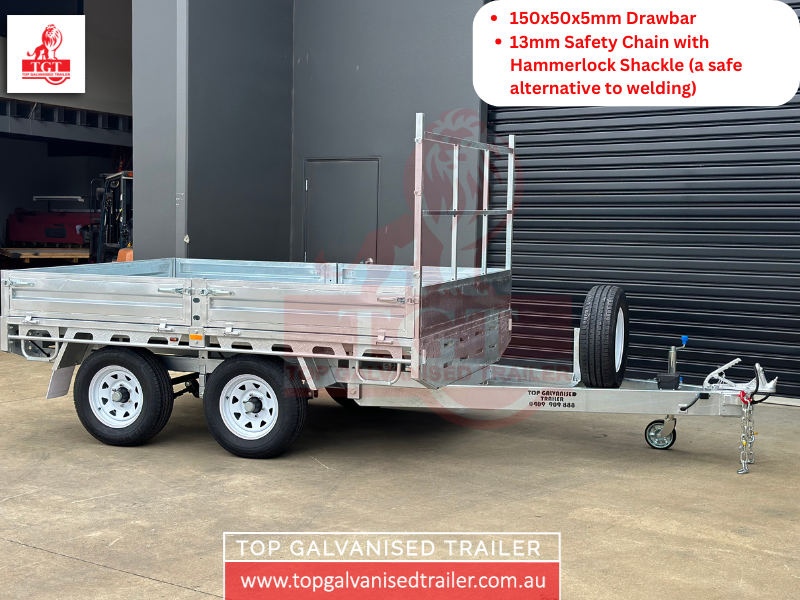

- Drawbar: 1900 mm; 150 x 50 x 5mm RHS
-
Coupling: 50 mm Quick Release Coupling 3500 kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Colour: Silver
-
Checker Plate: 2.5 mm
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50 mm Round Solid 12″ Dual Dexter Axle
-
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle) -
Wheel & Tyres: 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 195/R15C Light Truck Tyres -
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs. -

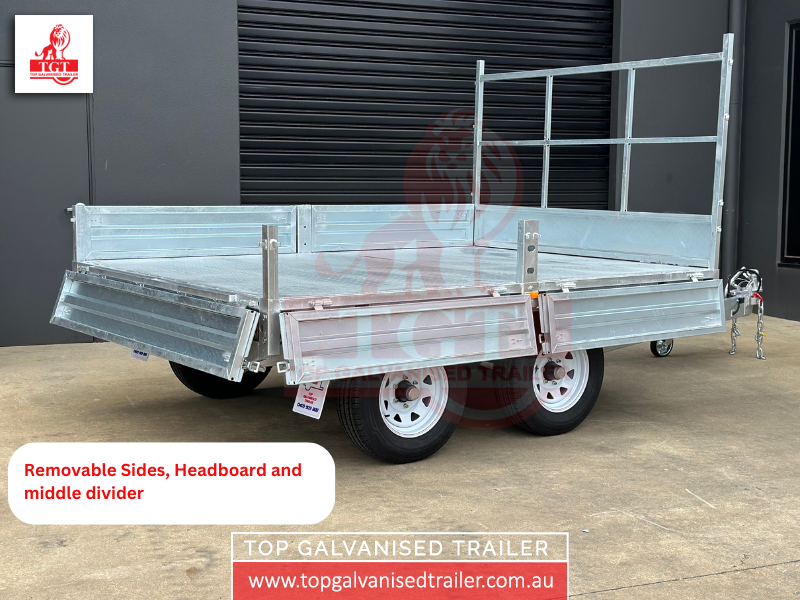

Sides: 400 mm; Removable Side & Rear Drop Down Gates -
Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling -
Brakes: 12″ Electric Drum on Four Wheels -

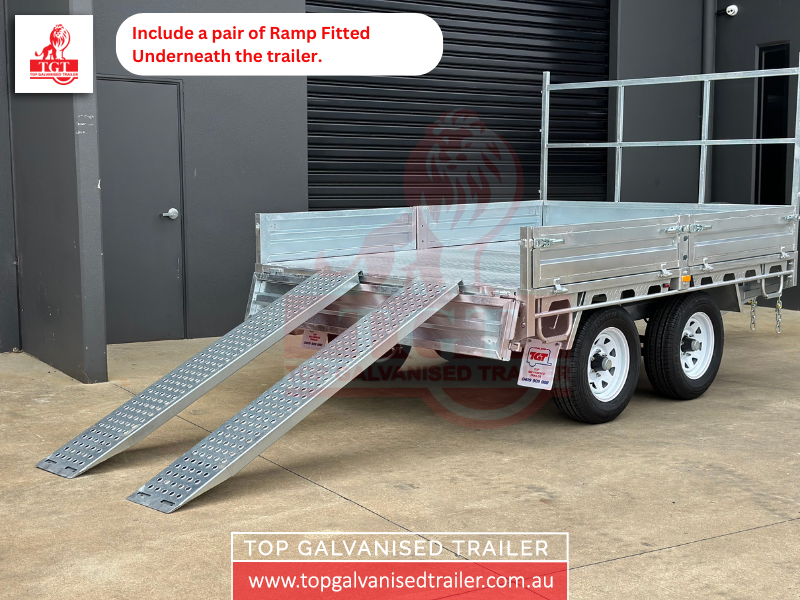

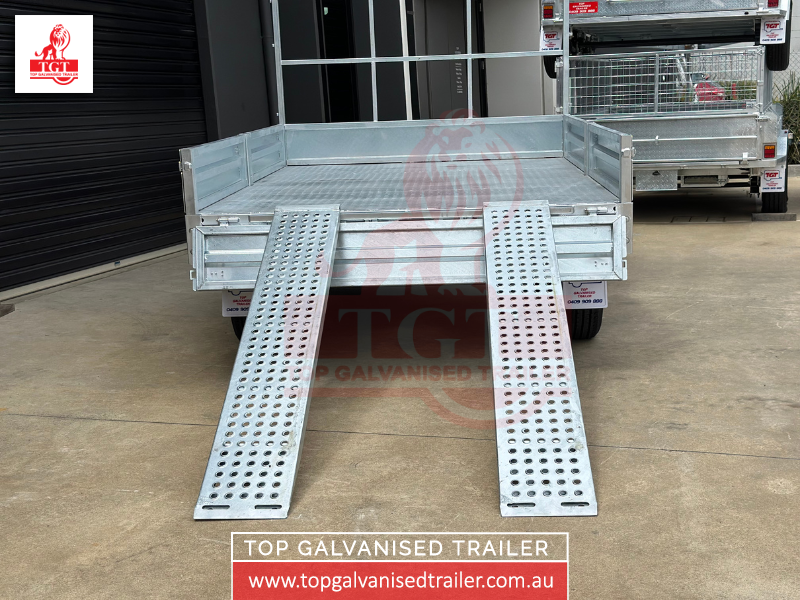

Ramps: 2m; 2Ton; Galvanised Underbody Slide Loading Ramps
- Warranty: 24 Months Structural
| Optional Extras |
|---|
- Spare Wheel: $200
- Spare Wheel Holder: $60
- 12 Months VIC Registration: $150
- Toolbox 1200*400*360mm: $500
- Galvanised Mower Pad: $500
Advantages of Flat Top Trailers compared to Box Trailers:
- Versatility: A forklift can more quickly and efficiently load and unload products because of the trailer’s flat, open-top surface.
- Size and Height: Compared to box trailers, flat top trailers are wider and taller, enabling the transportation of larger or taller objects.
- Weight Distribution: Flat top trailers feature a flatter surface that allows for more even weight distribution, suitable for heavy or irregularly shaped cargo.
Specifications
- ATM: 3500kg
- Tare: 990kg
- Loading Capacity: 2510kg
- Exterior Length: 4.90m
- Exterior Width: 2.01m
- Internal Size: 2920 x 2020 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle 2700kg Rated
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Underbody Ramps: 2m, 2Ton Slide Loading Ramps
- Tie Down Rails All Around
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration

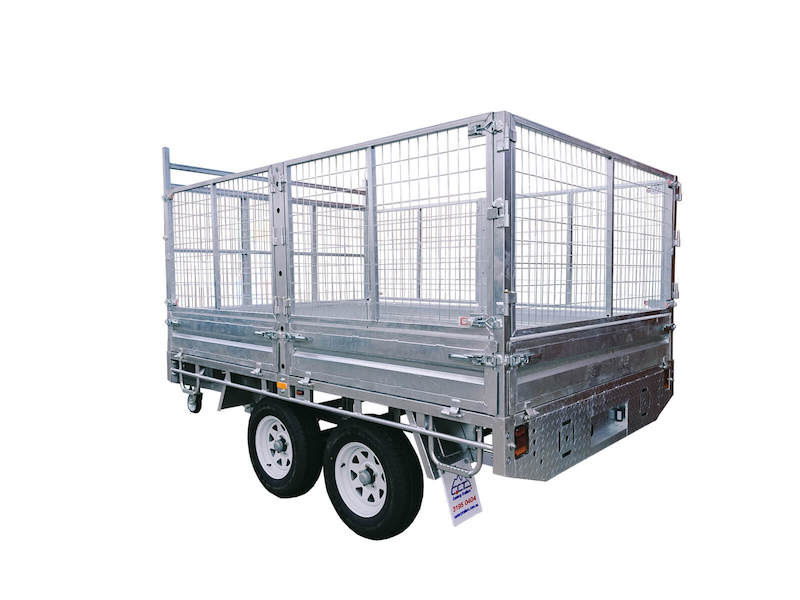

- Galvanised Cage 900mm
- Aluminium Toolbox
- Mowerpad
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
10×7 Flat Top Trailer with Ramps Galvanised 3500kg ATM
$7,199.00 $7,499.00 $300.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
Categories: Flat Top Trailers
SKU: 127FTT35-1
Description
Our hot-dipped galvanised flat top (flatbed) trailers are made of high-quality galvanised steel, ensuring durability and longevity in any environment.
Advantages of Flat Top Trailers compared to Box Trailers:
- Versatility: A forklift can more quickly and efficiently load and unload products because of the trailer’s flat, open-top surface.
- Size and Height: Compared to box trailers, flat top trailers are wider and taller, enabling the transportation of larger or taller objects.
- Weight Distribution: Flat top trailers feature a flatter surface that allows for more even weight distribution, suitable for heavy or irregularly shaped cargo.
Specifications
- ATM: 3500kg
- Tare: 990kg
- Loading Capacity: 2510kg
- Exterior Length: 4.90m
- Exterior Width: 2.01m
- Internal Size: 2920 x 2020 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle 2700kg Rated
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Underbody Ramps: 2m, 2Ton Slide Loading Ramps
- Tie Down Rails All Around
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 900mm
- Aluminium Toolbox
- Mowerpad
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
videos
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 900mm
- Aluminium Toolbox
- Mowerpad
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Warranty
Tailored for Work Backed for the Long Tow
We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.
