Description

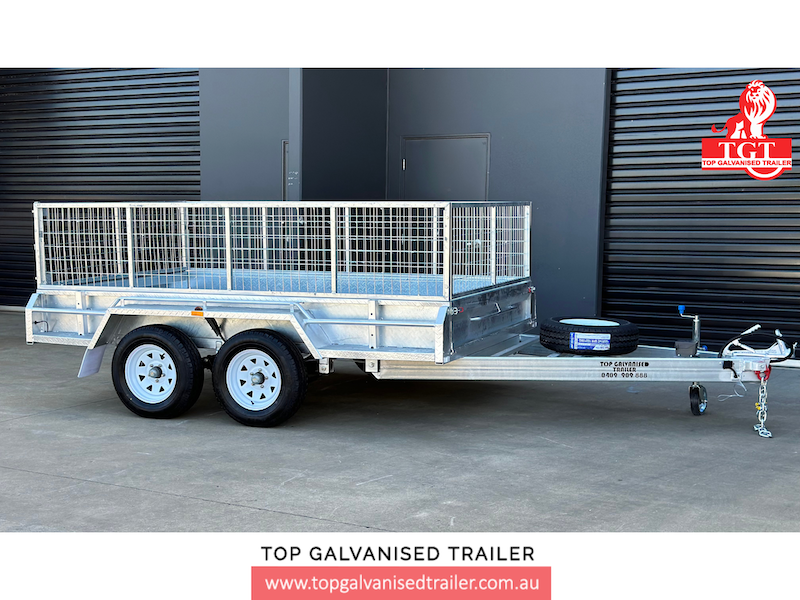

10×6 Heavy Duty Trailer with Electric Brakes 3200kg ATM
| Dimensions |
|---|
- ATM: 3200 kg
- Tare: 780 kg
- Loading Capacity: 2420 kg
- Exterior Length: 5.05 m
- Exterior Width: 2.32 m
- Internal Size: 3020 x 1830 x 300 mm
| Specifications |
|---|
- Drawbar: 1900 mm; 150 x 50 x 4 mm RHS
- Chassis: 70x50x3mm RHS Frame
-
Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Colour: Silver
-
Checker Plate: 2.5 mm
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50 mm Round Solid Axle with Parallel Bearings
-
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle) -
Wheel & Tyres: NEW 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres -
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs. -
Sides: 300 mm Folded Up (Not Bolted) Full Step-Up Platforms on Both Sides -
Cage: 600 or 900 mm -
Suspension: 7 Leaf (8mm) Rocker Roller Springs—- Not Slipper; Fully Welded Spring Hangers – Improved Stability, – Increased Load Capacity, – Longer Lifespan & Better Handling -
Brakes: 10″ Electric Drum Brakes On Four Wheels
- Warranty: 24 Months Structural
| More Features |
|---|
- 70mm×50mm Support Beams
Electric Trailer Brakes
- Convenience: Electric brakes can be activated through the brake controller in the towing vehicle, making them easier to use than manual brakes.
- Better Braking Performance: Electric brakes may offer more stopping power for heavier trailers than manual brakes.
- Increased Safety: By offering more effective stopping force and reliable braking performance, electric brakes can increase the overall safety of towing a heavy trailer.
- Consistent Braking: Electric brakes provide consistent braking performance, regardless of the weight distribution in the trailer.
- Low Maintenance: Electric brakes are low-maintenance and require minimal upkeep compared to other types of brakes.
Benefits of Dual Axle Over Single Axle Trailers
Single axle trailers just have one axle, while tandem trailers have two axles closely spaced apart.- Increased Load Capacity: Dual axle trailers can carry heavier loads.
- Improved Stability: They offer better stability and less sway.
- Better Weight Distribution: Reduces stress on each axle and tyre.
- Enhanced Safety: In case of a tyre failure, the other tyres can support the load.
- Smoother Ride: Generally provides a smoother towing experience.
Specifications
- ATM: 3200kg
- Tare: 780kg (Exclude cage)
- Loading Capacity: 2420kg
- Exterior Length: 5.05m
- Exterior Width: 2.32m
- Internal Size: 3020 x 1830 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS
- Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
- Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Loading Ramps
- Aluminium Toolbox
- Mowerpad
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
10×6 Tandem Trailer with Electric Brakes Galvanised 3200kg ATM
$5,290.00 $5,600.00 $310.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
Categories: Tandem Trailers
SKU: TBT32106
Description
Our heavy-duty trailers are equipped with powerful electric brakes for effective stopping power and safety on the road. Its hot-dipped galvanised design means that it can be used in rough outdoor environments without fear of rust or corrosion.
Specifications
- ATM: 3200kg
- Tare: 780kg (Exclude cage)
- Loading Capacity: 2420kg
- Exterior Length: 5.05m
- Exterior Width: 2.32m
- Internal Size: 3020 x 1830 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS
- Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
- Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Loading Ramps
- Aluminium Toolbox
- Mowerpad
- Elecbrakes Brake Controller
- Other Customisations
videos
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Loading Ramps
- Aluminium Toolbox
- Mowerpad
- Elecbrakes Brake Controller
- Other Customisations
Warranty
Tailored for Work Backed for the Long Tow
We go beyond standard builds — offering lasting support and flexibility for serious users. Whether you’re in construction, farming, or transport, our trailers are built to match your workload and backed by expert guidance every step of the way.
